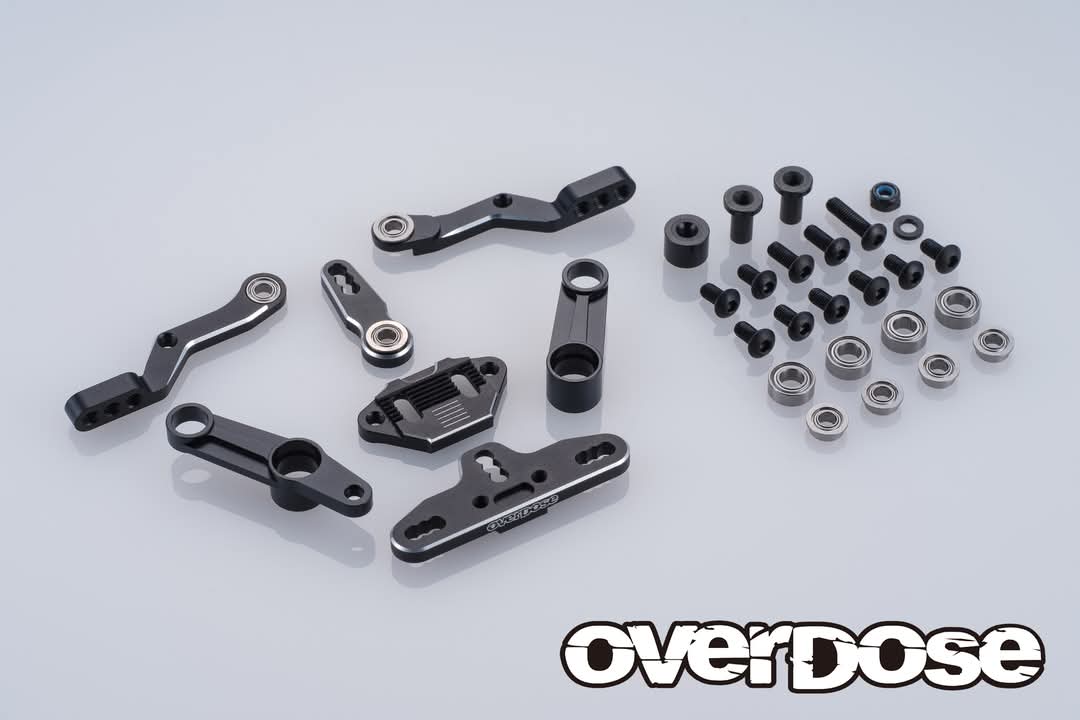

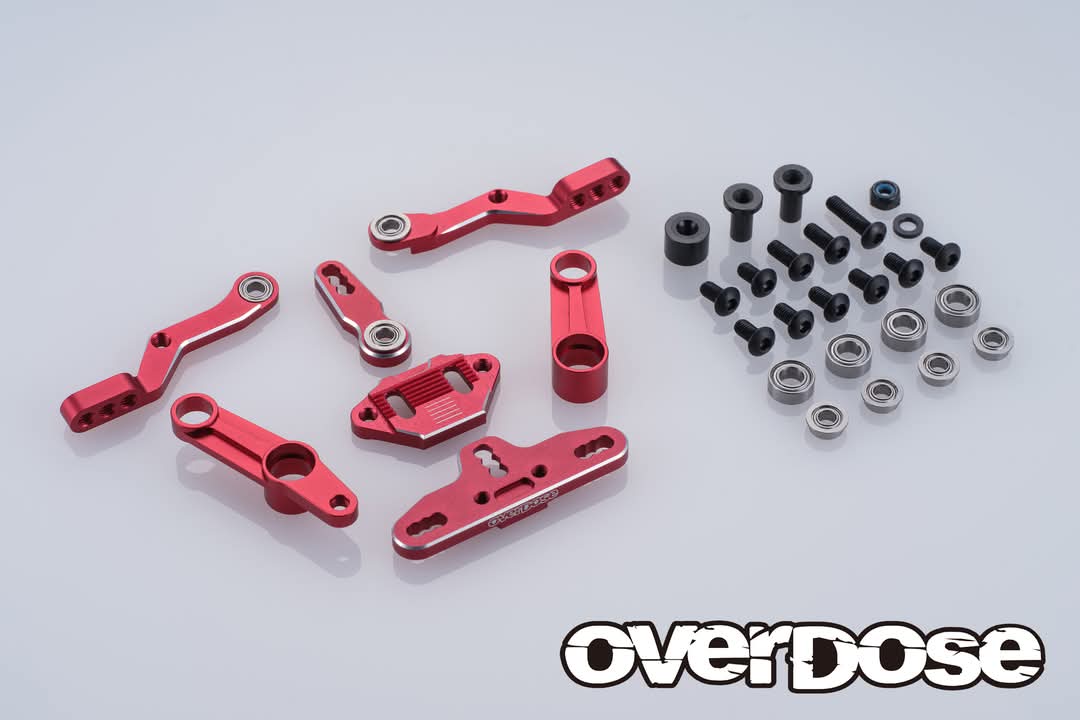

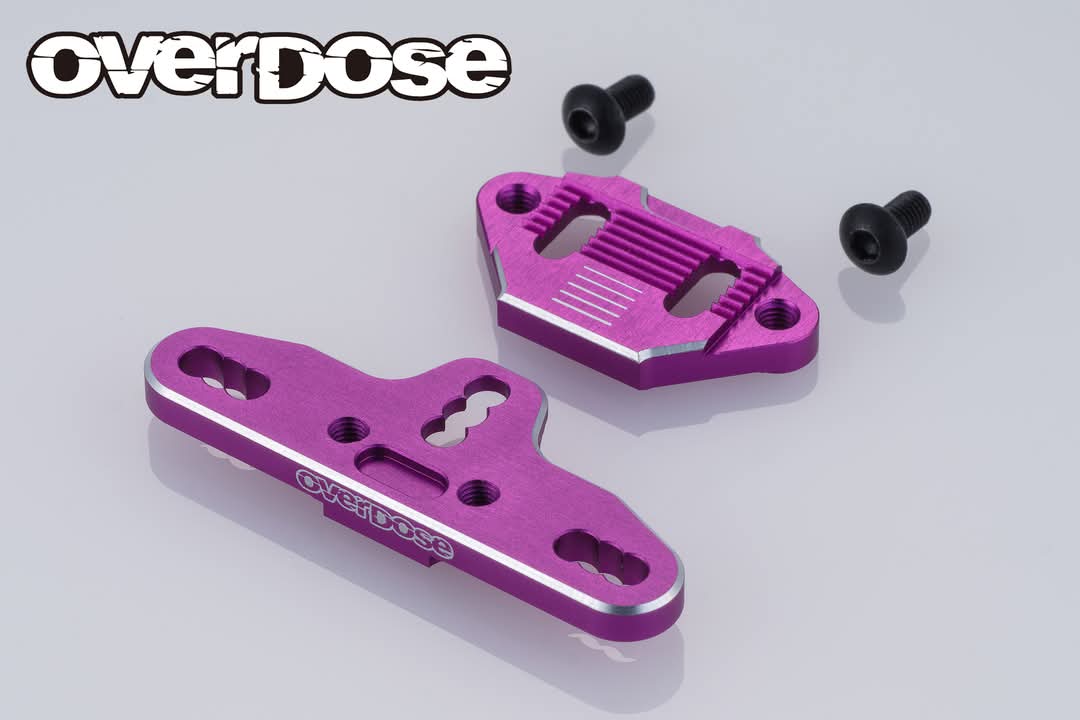

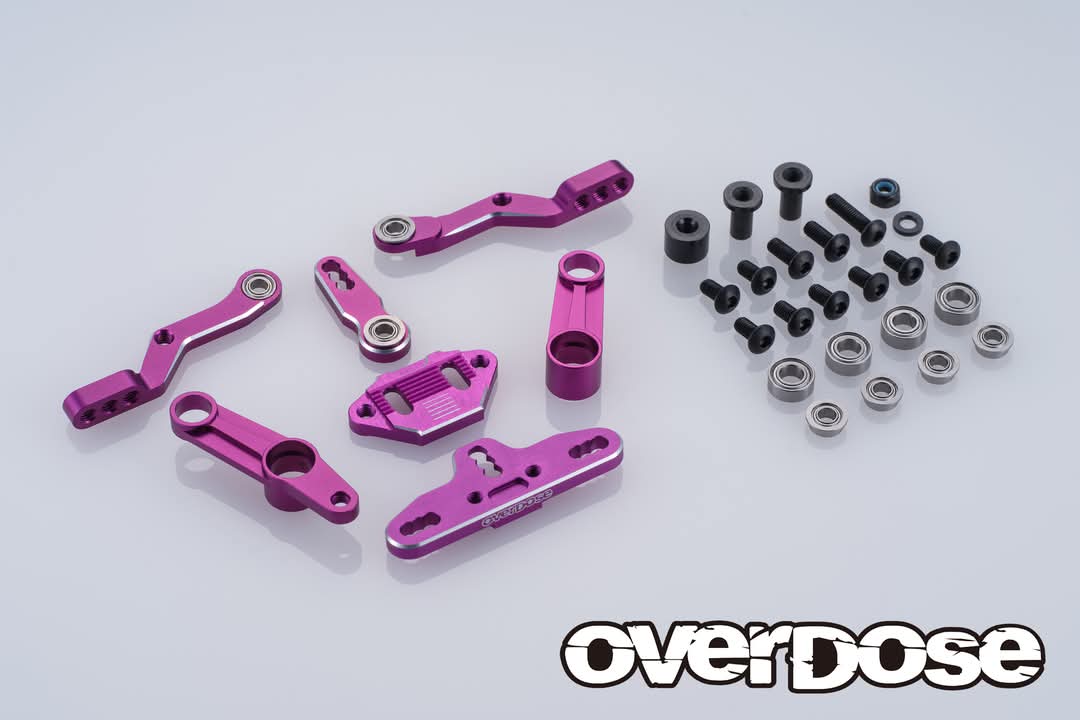

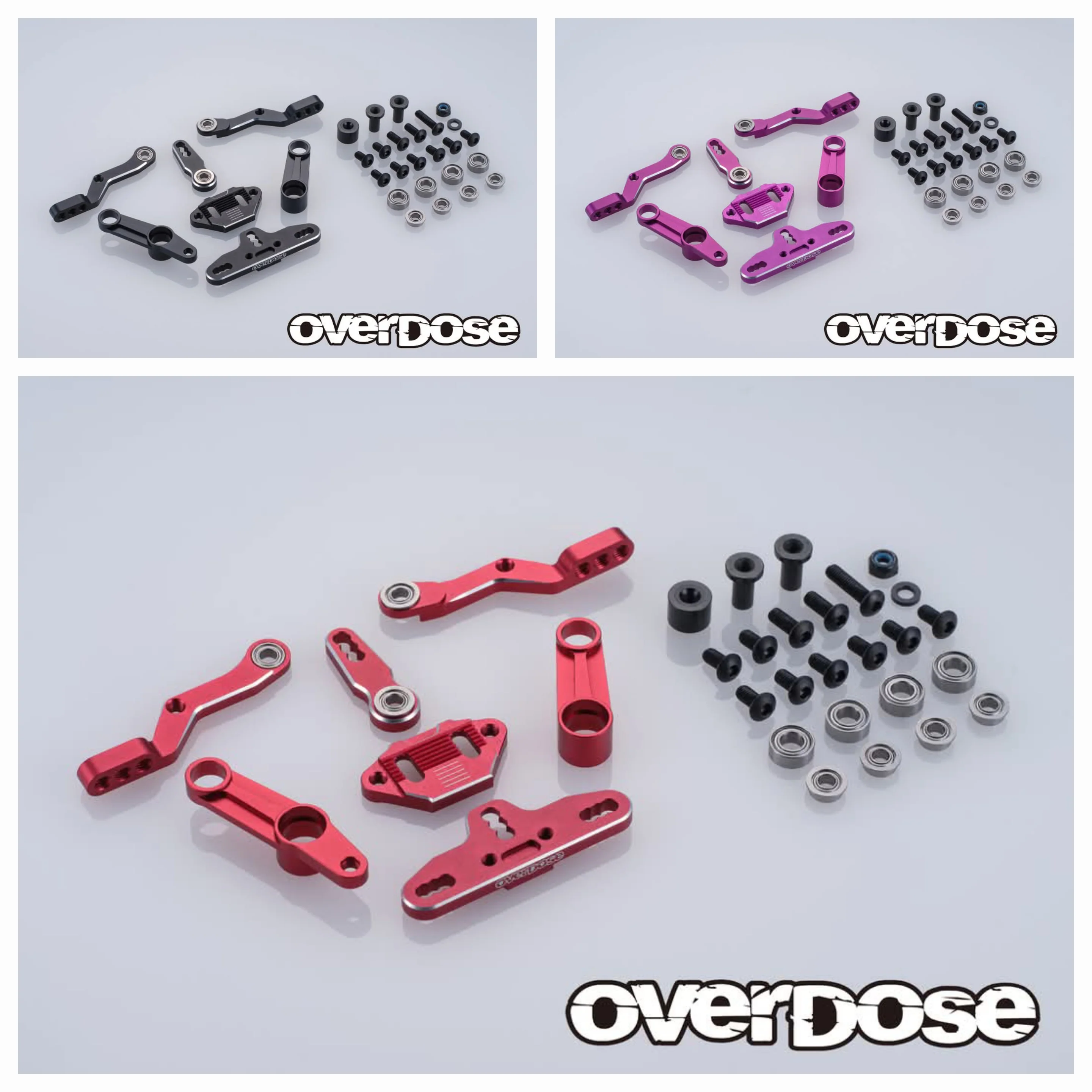

OVERDOSE OD392 Tripple Steering Wiper Set Typ-2 (For GALM) various colours
Transform your steering experience with the OVERDOSE Tripple Steering Wiper Set Typ-2 for GALM!.
OVERDOSE innovative triple link system elevates Ackerman settings to a whole new level. With the ability to adjust the trajectory of the link, you have full control over the Ackerman ratio until maximum steering angle is achieved. The control link has three adjustable stages, allowing you to modify the tie rod's trajectory without altering its neutral position. The left and right wipers can also be mounted in three different locations for added customization. OVERDOSE adjustable steering base, tilted at a 5-degree angle, minimizes bump steer during steering. With a 4mm forward movement from the standard mounting position, the entire wiper unit can be easily adjusted for optimal performance. And with 5 stages of adjustment ranging from 1mm pitch, you can fine-tune your own Ackerman set without changing the tie rod's protrusion.
Note 1. When used in combination with a plastic normal bulkhead, there are some hole positions that cannot be used.
Note 2. Cannot be used with OD2663-5 Aluminum Front Bulkhead Type-2.
Note 3. Use in conjunction with OD3438-40 Aluminum Front Bulkhead Type-3 (For GALM Series) is recommended.
Note 4. There may be interference depending on the mounting height of the suspension mount used on the front rear.
Note 5. The adjustment range may be limited depending on the type of suspension mount, mounting height, etc.
Original: $303.93
-65%$303.93
$106.38
Description
Transform your steering experience with the OVERDOSE Tripple Steering Wiper Set Typ-2 for GALM!.
OVERDOSE innovative triple link system elevates Ackerman settings to a whole new level. With the ability to adjust the trajectory of the link, you have full control over the Ackerman ratio until maximum steering angle is achieved. The control link has three adjustable stages, allowing you to modify the tie rod's trajectory without altering its neutral position. The left and right wipers can also be mounted in three different locations for added customization. OVERDOSE adjustable steering base, tilted at a 5-degree angle, minimizes bump steer during steering. With a 4mm forward movement from the standard mounting position, the entire wiper unit can be easily adjusted for optimal performance. And with 5 stages of adjustment ranging from 1mm pitch, you can fine-tune your own Ackerman set without changing the tie rod's protrusion.
Note 1. When used in combination with a plastic normal bulkhead, there are some hole positions that cannot be used.
Note 2. Cannot be used with OD2663-5 Aluminum Front Bulkhead Type-2.
Note 3. Use in conjunction with OD3438-40 Aluminum Front Bulkhead Type-3 (For GALM Series) is recommended.
Note 4. There may be interference depending on the mounting height of the suspension mount used on the front rear.
Note 5. The adjustment range may be limited depending on the type of suspension mount, mounting height, etc.
